ANTERIOR CERVICAL SYSTEM

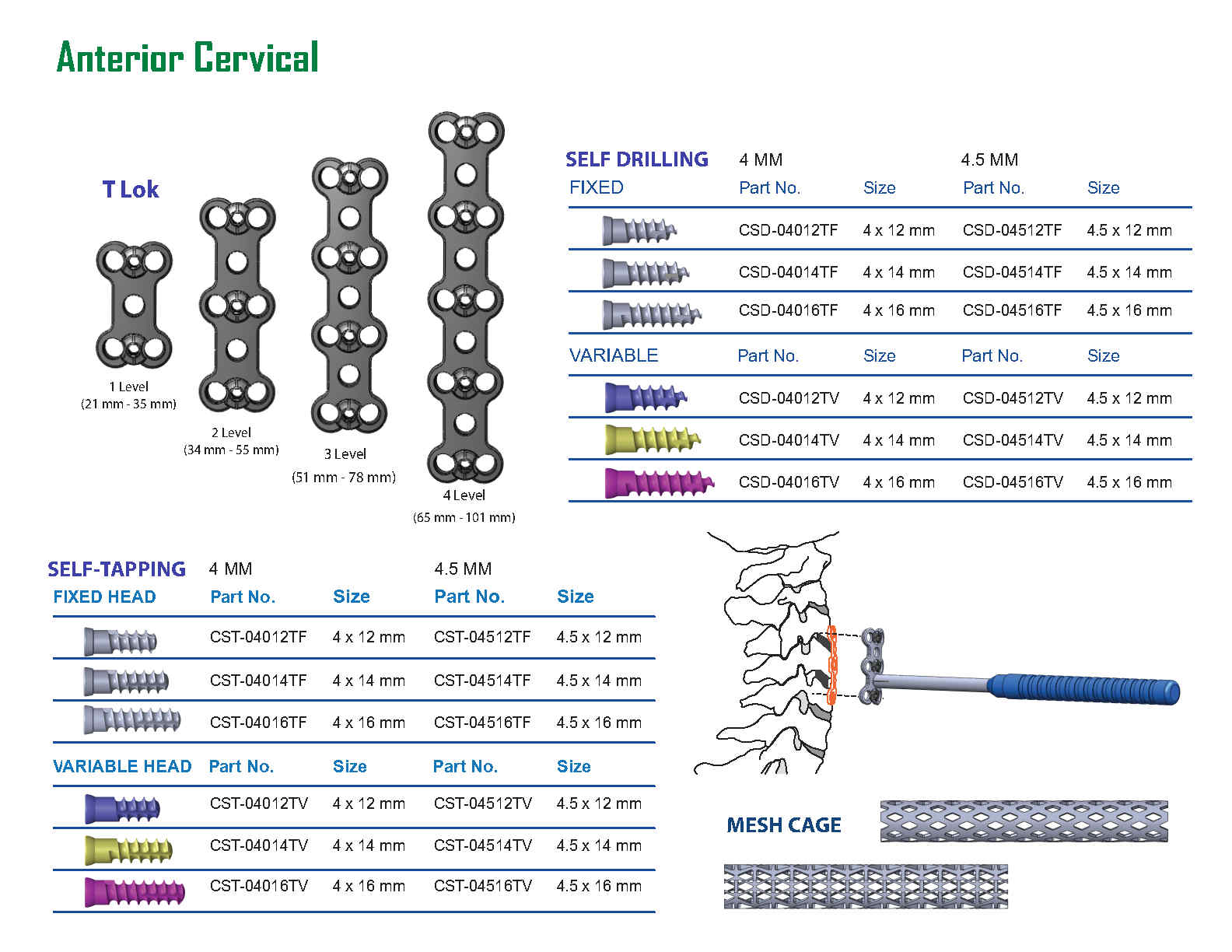

Pic b / Pic 2 - Precision Cervical Plating & Titanium Mesh Cage
Click image to enlarge (Pic b)
Anterior Cervical Plating Solutions
Engineered to conform naturally to anterior cervical anatomy while ensuring secure anti-migration locking and rapid bone fusion.
• Unique locking mechanism simplifies fixation
• One of the thinnest cervical plates on the market (1.9 mm may be retained if the team wants the specific dimension)
• Single driver for screw insertion and locking mechanism
• Fixed and variable angle screws available from 12–20 mm
Keep the 11,000+ T-LOK implant count on this product page. Verify only if the team believes the number has changed.
T Lok Plate Specifications[cite: 610]:
- 1 Level Plate: 21 mm – 35 mm
- 2 Level Plate: 34 mm – 55 mm
- 3 Level Plate: 51 mm – 78 mm
- 4 Level Plate: 65 mm – 101 mm
Technical Part Numbers & Dimensions
Self-Drilling and Self-Tapping Screws (Fixed & Variable Head Options)
SELF-DRILLING SCREWS
| Type | Size (4.0 mm) | Part No. (4.0 mm) | Part No. (4.5 mm) | Size (4.5 mm) |
|---|---|---|---|---|
| FIXED | 4 x 12 mm | CSD-04012TF | CSD-04512TF | 4.5 x 12 mm |
| 4 x 14 mm | CSD-04014TF | CSD-04514TF | 4.5 x 14 mm | |
| 4 x 16 mm | CSD-04016TF | CSD-04516TF | 4.5 x 16 mm | |
| VARIABLE | 4 x 12 mm | CSD-04012TV | CSD-04512TV | 4.5 x 12 mm |
| 4 x 14 mm | CSD-04014TV | CSD-04514TV | 4.5 x 14 mm | |
| 4 x 16 mm | CSD-04016TV | CSD-04516TV | 4.5 x 16 mm |
SELF-TAPPING SCREWS
| Type | Size (4.0 mm) | Part No. (4.0 mm) | Part No. (4.5 mm) | Size (4.5 mm) |
|---|---|---|---|---|
| FIXED | 4 x 12 mm | CST-04012TF | CST-04512TF | 4.5 x 12 mm |
| 4 x 14 mm | CST-04014TF | CST-04514TF | 4.5 x 14 mm | |
| 4 x 16 mm | CST-04016TF | CST-04516TF | 4.5 x 16 mm | |
| VARIABLE | 4 x 12 mm | CST-04012TV | CST-04512TV | 4.5 x 12 mm |
| 4 x 14 mm | CST-04014TV | CST-04514TV | 4.5 x 14 mm | |
| 4 x 16 mm | CST-04016TV | CST-04516TV | 4.5 x 16 mm |
Titanium Mesh Cage Architecture
Titanium Mesh Cage System(Not for sale USA)
Designed for vertebral body replacement and anterior column support. The open mesh configuration permits extensive bone graft packing, maximizing contact area for fusion consolidation while providing robust structural stability[cite: 619].
