PEEK INTERBODY SYSTEM

Pic d / Pic 4 - Biocompatible Polyetheretherketone (PEEK) Spacers [cite: 581]

Click image to enlarge (Pic d)
RADIOLUCENT ASTM F2026 [cite: 587]

Advanced PEEK Interbody Solutions

Providing optimal modulus of elasticity matching natural cortical bone, with large graft windows for bone fusion[cite: 588].

  • Excellent radiolucency for postoperative monitoring[cite: 587].
  • X-ray markers form "H" image in sagittal view for precise positioning[cite: 589].
  • Toothed surface ridges prevent spacer migration.
Back to Products Overview

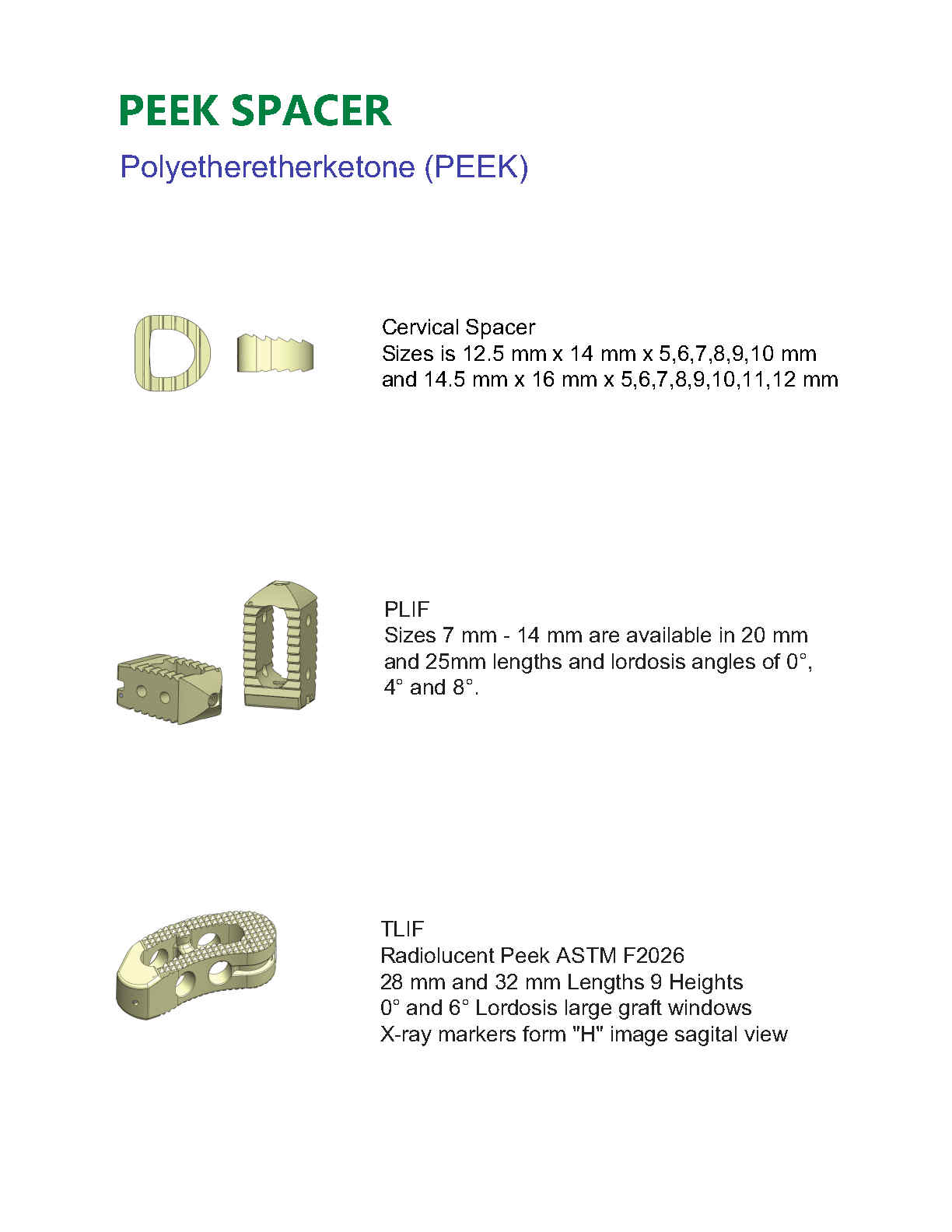

PEEK Spacer Lineup (Pic 4) [cite: 575]

Technical Dimensions & Lordosis [cite: 580]

Cervical Spacer [cite: 576, 582]

Sizes: 12.5 x 14 mm (Heights: 5, 6, 7, 8, 9, 10 mm) | 14.5 x 16 mm (Heights: 5, 6, 7, 8, 9, 10, 11, 12 mm) [cite: 583]

PLIF Spacer [cite: 584]

Heights: 7 mm to 14 mm | Lengths: 20 mm and 25 mm | Lordosis angles: 0°, 4°, and 8° [cite: 585]

TLIF Spacer [cite: 586]

Lengths: 28 mm and 32 mm | 9 Heights available | Lordosis angles: 0° and 6° | Large graft windows [cite: 588]
